Complete Water Cooling System


In most applications, the IceProbe is bulkhead mounted into a liquid reservoir and powered by either an internal or external power supply.

In many implementations, the Nova Tec Proportional Temperature Controller is used to regulate the IceProbe’s cooling power.


Easy Bulkhead Installation

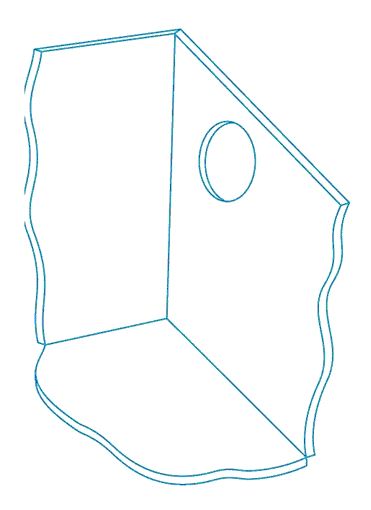

With its threaded probe, nylon nut, and silicon washer, the IceProbe can be easily installed through a 1.25 inch hole into virtually any type of liquid reservoir.

Provided that the probe is fully submerged in the liquid and air can freely circulate around the IceProbe’s fins and fan, it can be installed through a top, side, or bottom wall.

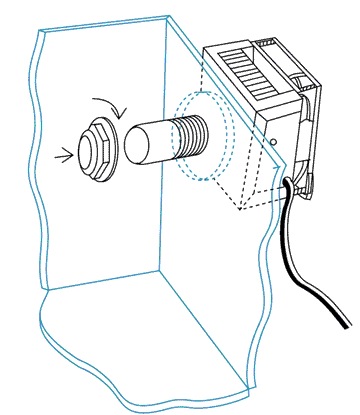

To achieve the best possible watertight seal, the silicon washer should be installed on the dry side of the wall as shown in the diagram to the right.
